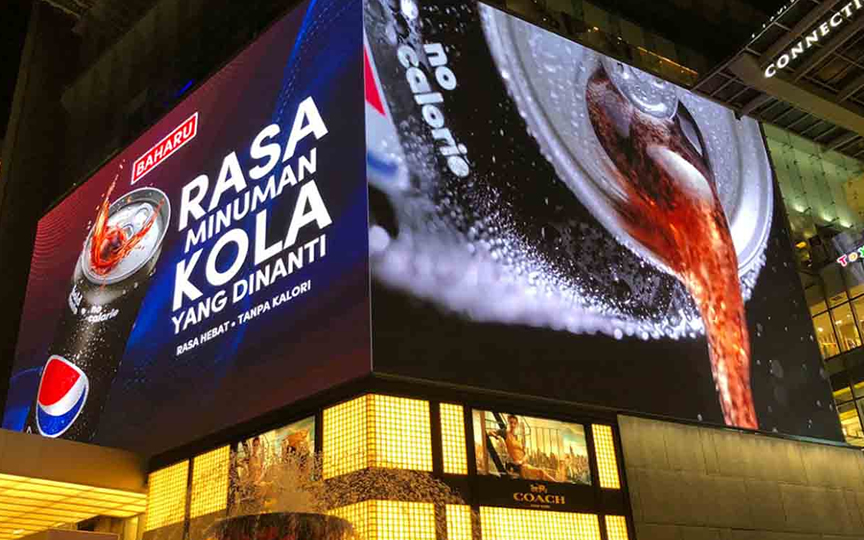

Installing an outdoor LED Display involves more than just mounting a screen. It requires detailed planning, structural preparation, proper wiring, and configuration to ensure optimal performance and safety. This guide walks you through the key steps.
1. Site Inspection and Measurement
Before installation, evaluate:
-
Wall or structure strength
-
Viewing distance and angle
-
Sunlight direction and brightness
-
Ventilation and waterproofing conditions
A thorough site survey prevents mistakes during installation.
2. Prepare the Steel Structure
For outdoor LED displays, a solid steel frame or column is required to withstand wind loads and ensure stability.
-
Use anti-rust treated materials
-
Ensure alignment with laser level tools
-
Leave maintenance access space behind the display (if rear maintenance)
3. Install Power Supply and Wiring
-
Use certified outdoor-rated power cables and waterproof enclosures
-
Apply voltage stabilizers or surge protectors to avoid power fluctuation damage
-
Keep data cables (CAT5/CAT6) and power lines separated to reduce interference
4. Cabinet Mounting and Connection
-
Mount the LED cabinets one by one according to the layout
-
Use cabinet locks or screws for tight, seamless fitting
-
Connect signal cables from one cabinet to the next in the correct order
-
Connect power cables and double-check voltage
5. Controller Setup and Display Configuration
-
Install the sending card in the control computer
-
Connect to the LED screen via network cable or fiber
-
Use configuration software to set resolution, brightness, and content scheduling
-
Test with sample video to check color and smoothness
6. Waterproof and Heat Management Check
-
Ensure cabinets are sealed properly
-
Check for ventilation fans and air outlets
-
Avoid placing screens directly under heavy rain flow areas
7. Final Testing
Before going live:
-
Play full-color videos to test all pixels
-
Check brightness under sunlight
-
Monitor temperature and run for at least 24 hours
A well-installed LED Display can last over 8–10 years with minimal maintenance. Topview Display provides professional installation support and detailed guidance tailored to your project needs.
